Products Description

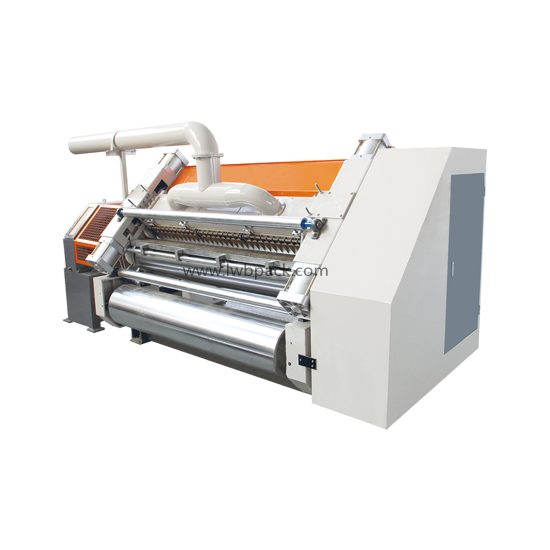

Function introduction of single-sided corrugated cardboard machine:
1. Design speed: 100m/min
2. Effective width: 1400mm-1800mm
3. Leng roller: diameter 280mm.
4. The drive gearbox adopts oil immersion lubrication to reduce noise, universal joint transmission, and isolated power source.
5. The lifting and lowering of the tile roller, pressure roller, and coating roller are all controlled by pneumatic means.
6. The paper guiding method adopts vacuum adsorption with air volume adjustment device to maintain the stability of the corrugated shape at high speed.
7. The tile roller and pressure roller bearings are lubricated with high-temperature resistant grease.
8. The glue application department adopts automatic circulation for glue supply.
9. The upper and lower corrugated rollers are made of high-quality 48CrMo chromium molybdenum alloy steel, which has been heat-treated and ground to a hardness of HRC58o-60o on the surface.
10. The surface of the glue roller has undergone mesh carving and chrome plating treatment.
11. Manual or electric rubber isolation device.
12. The glue coating department can be stopped in two ways: independent operation or non independent operation. The main motor is controlled by frequency conversion (optional).
