Products Description

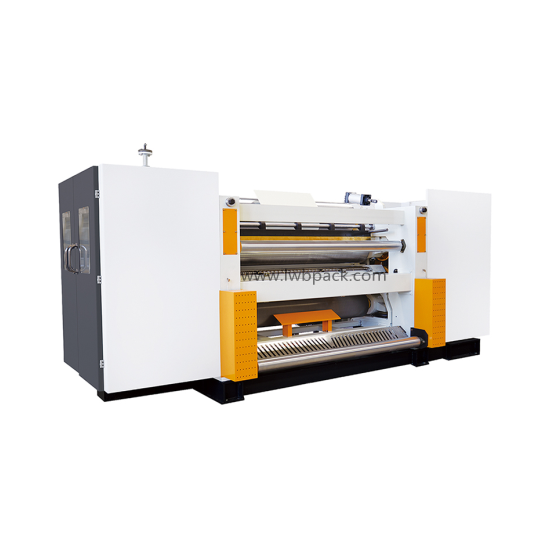

Introduction to mechanical functions of adsorption single-sided corrugated cardboard:
1. The drive gearbox adopts oil immersion lubrication to reduce noise, universal joint transmission, and isolated power source (optional).
2. The lifting and lowering of the tile roller, pressure roller, and coating roller are all controlled by pneumatic means.
3. The paper guiding method adopts vacuum adsorption with air volume adjustment device to maintain the stability of the corrugated shape at high speed.
4. The tile roller and pressure roller bearings are lubricated with high-temperature resistant grease.
5. The glue application department adopts automatic circulation glue supply.
6. The upper and lower corrugated rollers are made of 48CrMo alloy steel, which has undergone heat treatment and has a hardness of HV1200 or higher. The surface is treated with tungsten carbide or hard chromium plating.
7. The surface of the glue roller has undergone mesh carving and chrome plating treatment.
8. Manual or electric rubber isolation device.
9. The glue coating department can be shut down in two ways: independent operation or non independent operation.
Tags:
Technical parameter
Bicycle cardboard box
International Exhibition of Ca
Four color ink printing machin
Equipment loading and unloadin
Design speed: 180m/min
Effective width: 1400mm-2200mm
Leng roller: φ320mm/360mm
