Products Description

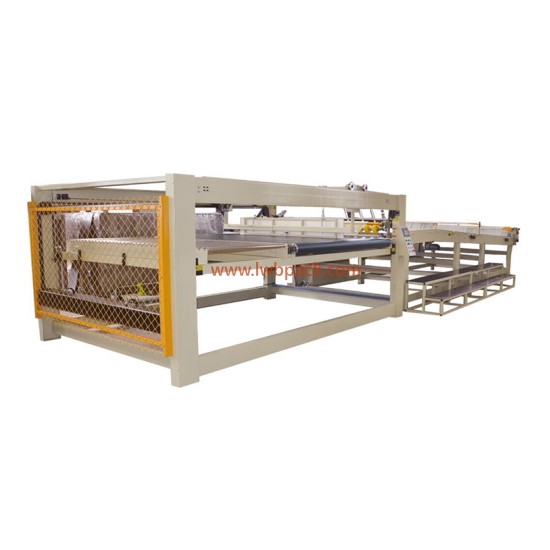

Cardboard stacking machine function and Features:
1. Longmen style stacking, accurate counting, automatic stacking and order replacement, neat stacking;
2. The first conveying section uses vacuum adsorption to transport cardboard, with four rows of carbon fiber paper strips automatically controlled for paper pressing. The cardboard is neatly stacked and transported smoothly
3. Variable frequency motor, variable frequency controlled cardboard conveyor, with synchronous conveying speed and cardboard speed;
4. Variable frequency motor, variable frequency control gantry for smooth lifting, fast and neat stacking;
5. The tailgate is equipped with a permanent magnet synchronous servo motor and servo controlled positioning, allowing for quick and precise adjustment during order changes;
6. Flat belt stacking platform, when the stacking reaches the set quantity, the permanent magnet synchronous servo control ensures smooth horizontal paper output;
7. There are communication and control interfaces, which are connected to the management system to achieve automatic order exchange and order management;
8. Standard industrial air conditioning, electrical equipment operates in a dust-free, constant temperature, and constant humidity environment;
9. Strictly designed according to CE standards to ensure the safety of equipment use.
Tags:
Technical parameter
Bicycle cardboard box
International Exhibition of Ca
Four color ink printing machin
Equipment loading and unloadin
Effective width | 1800mm | 2200mm | 2500mm |
Stacking speed | 150m/min | 180m/min | 200m/min |
Stacking length | 3500mm | ||
Stacking height | 280mm |
