Products Description

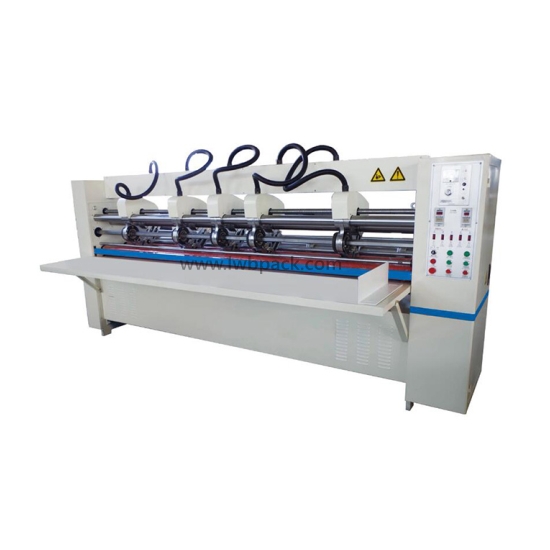

Cardboard cutting machine type C: adopts electric control of blade distance, vertically cuts corrugated cardboard, and cuts the cardboard smoothly.
1. Paper feeding can be configured with manual or automatic paper feeding stations.
2. The pre press wheel, paper separator holder, and crimping wheel are automatically and independently adjustable.
3. Equipped with manual/automatic sharpening.
4. The cardboard height and pressure are automatically adjusted.
5. Fine tune by tapping.
6. Automatic counting.
7. The accuracy of paper indentation is ± 0.5mm.
8. Human machine interface - PLC control, separate paper knives and order placement are controlled by independent servo motors, with an automatic order placement speed of 3-8 seconds and an error accuracy of ± 0.5 millimeters.
9. The operation is very user-friendly, with no technical content, and can be operated by ordinary workers.
10. Cutting section: Made of high-quality tungsten steel alloy blades, with a long service life. The cut of the split cardboard is neat, without cracks or burrs.
11. Pre press wheel, paper separator holder, and crimping wheel are automatically and independently operated by pneumatic lifting.
12. This machine can store 999 sets of orders.
13. The PLC control operating system has a simple structure and is easy to maintain.
Tags: Cardboard cutting machine
