Products Description

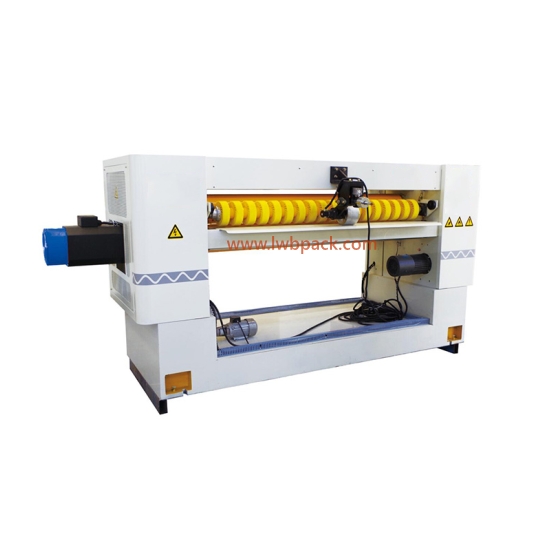

Corrugated cardboard cross cutting machine features:
1、Optional single-layer or double-layer configuration.
2、Color touch
screen operation allows you to check orders, insert orders, and delete orders at
any time.
3、Spiral blade design, cutting paper smoothly.
4、Servo drive,
efficient and high-precision.
5、Independent variable frequency drive for
front and rear paper feeding, automatically tracking the speed of the production
line.
6、Communication servo control, saving 30% energy.
7、Can store
orders, modify orders without downtime, and can connect to management
systems.
Tags: Cardboard cutting machine
Technical parameter
Bicycle cardboard box
International Exhibition of Ca
Four color ink printing machin
Equipment loading and unloadin
| Working width | 1600/1800/2200mm | |
| Model | Single layer cross cutting, double-layer cross cutting | |
| Minimum paper cutting length | 500mm | |
| Maximum paper cutting length | 9999mm | |
| Paper cutting accuracy | Uneven speed | ±2mm |
| Uniform speed | ±1mm | |
| External dimensions(mm) | Bilayer | 3650(1600) / 3850(1800) / 4250(2200) *1500*1830 |
Single layer | 3650(1600) / 3850(1800) / 4250(2200) *1500*1530 | |
